Durite 0-443-98 Switch Panel

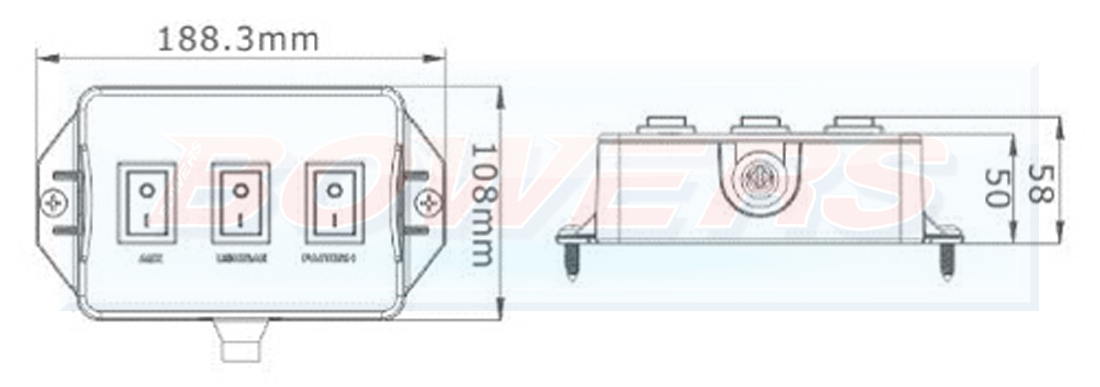

Durite 0-443-98 Switch Panel Schematic
  • Durite 0-443-98 Switch Panel
  • Durite 0-443-98 Switch Panel Schematic

3 Way Switch/Control Panel For LED Light Bars/Beacon Bars

Product Ref: DUR0.443.98

Brand: Durite

MPN: 0-443-98

Dimensions: 188.3mm (Length) x 108mm (Width) x 58mm (Height)

Cross Reference: 0-443-99

£32.27 inc VAT£26.89 ex VAT

In Stock

Features

3 Way switch panel for lightbar power (latching switch), an optional auxiliary function light alley lights (latching switch) and flash pattern control (momentary switch)

Technical Information

  • Dual voltage 10-30v
  • Pre-wired
  • 2x Screw fixing
  • 15A @ 12v / 10A @ 24v
  • Water and dust proof to IP64

Wiring Instructions

  • Red - 12v
  • Black - Earth
  • Yellow - Lightbar 12v
  • Green - Aux 12v
  • White - Flash pattern control
