Product Code: ZMIVENTKIT10

24v Low profile motorised turbo Roof Vent/Extractor fan, ideal for use on caravans/light commercial vehicles/animal transport i.e. dog vans

Fan can draw air in and extract with the switch provided

12v version also available, see related products

NOTE 1: The fan and the internal grille/vent do not attach together, the fan is attached to the roof outside the vehicle and the internal grille/vent is either screwed to the roof lining or can be bonded/glued to the roof

‚ÄčNOTE 2: The fan is designed for flat roofs. It can be fitted to ridged roofs but the gaps will have to be filled with a suitable material and sealant. Pleas ensure your installer is capable of this

Additional Information:

  • Fan will suck & blow with supplied switch
  • Supplied with installation & switch wiring instructions

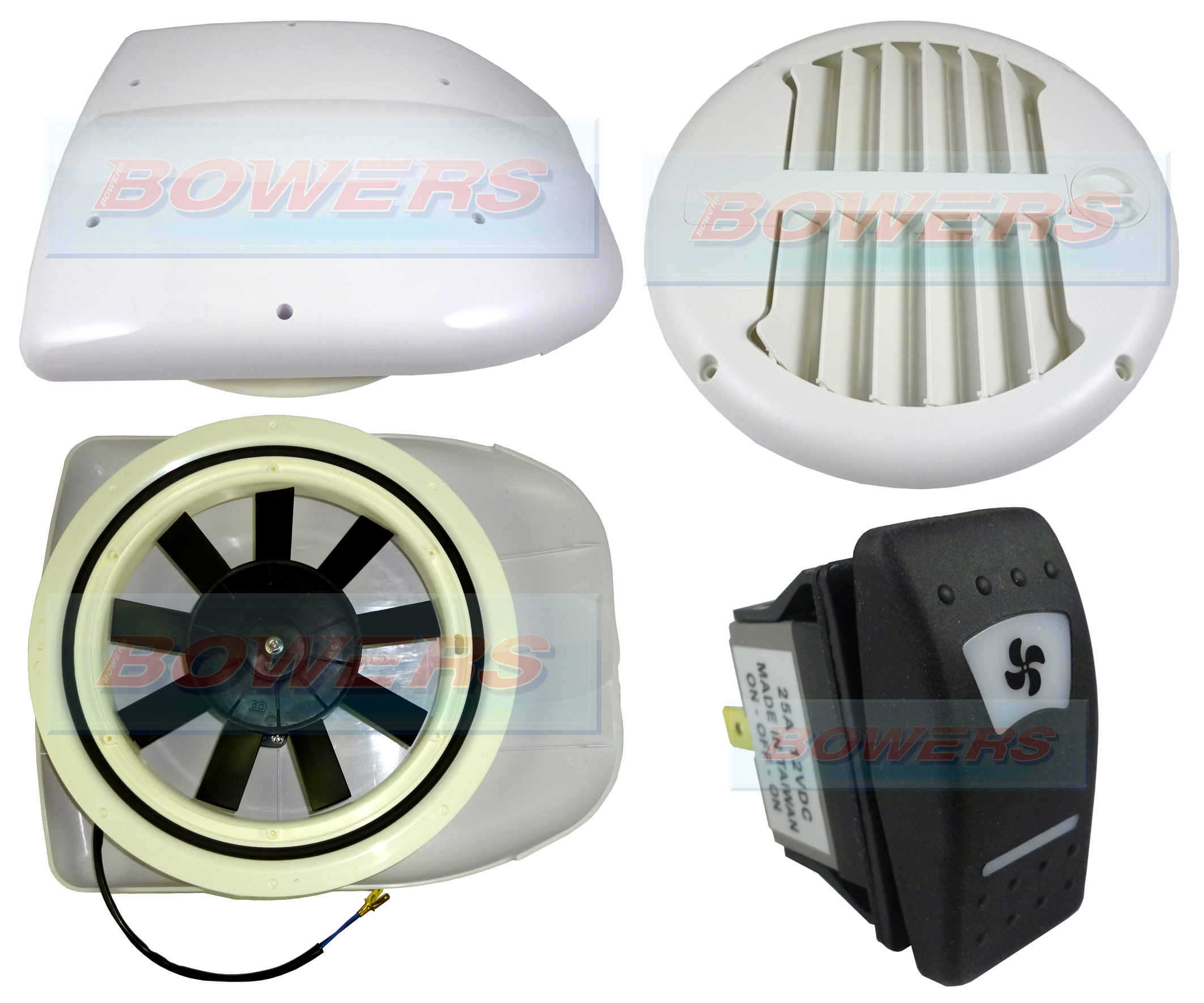

  • Complete with closeable white internal vent and 2 way illuminating fan switch switch (illuminates RED when active)
  • Low profile, aerodynamic design
  • Robust construction
  • European made not cheap chinese copy
  • Complete with rubber roof seal
  • Non-Corrosive
  • 2600 RPM
  • 850 m3/h Air flow
  • 80 Watt
  • 52dB Noise level
  • 230mm Diameter hole required in roof
  • 80°C Max operating temperature

Dimensions:
Height from roof: 64mm, External vent width: 312mm, External vent length: 385mm, Internal vent diameter: 290mm, Internal vent thickness: 20mm

Cross Reference:
02-2300

£89.79 (ex. VAT)

Can only purchase a whole number

ZMIVENTKIT2 Low Profile Motorised Turbo Roof Vent/Extractor Fan
ZMIVENTKIT1 Low Profile Motorised Turbo Roof Vent/Extractor Fan 2
